Monitoring blind spots
Fugitive emissions from unorganized sources may go undetected, leaving incomplete monitoring records.
INDUSTRIAL PARK ENVIRONMENTAL MONITORING
Industrial Park Environmental Monitoring
Centralized Management of Environmental Data, Alerts and Reports
Collect environmental data through LoRaWAN / 4G sensors, gateways and edge buffering. View monitoring points, configure alerts and export reports in the cloud. Parameters and points are defined by emission sources, park coverage and management requirements.
LoRaWAN Sub-GHz4G / Ethernet backhaulEdge buffering and backfillOpen API
On site
Monitoring gaps across the park
Large sites need continuous coverage, stable data transmission and a consistent reporting workflow.
High manual inspection workload
Crews with handheld detectors require time and labor, and coverage becomes harder as the park expands.
Incomplete or fragmented records
Weak-signal zones can interrupt data collection, while separate vendor platforms make records harder to review and export together.
Delayed incident response
If readings are reviewed only during scheduled checks, operators may not see an abnormal condition soon enough to investigate it promptly.
System workflow
From monitoring points to alerts and reports
Choose the sensor interface, field network and application path for each monitoring location.
- 01
Measure on site
Fixed stations and compatible sensors collect the environmental parameters required at each location.
- 02
Choose the field link
Use wired serial, LoRaWAN or cellular paths according to the selected sensor and gateway. LoRaWAN requires a gateway and Network Server.
- 03
Deliver readings
The gateway or server delivers data to the application. Buffering and backfill depend on the selected equipment and configuration.
- 04
Review and report
Dashboards, configured alerts and exports bring the distributed monitoring points into an operating view.
Monitoring and control
Environmental monitoring, alerts and reports
The platform combines distributed readings, alert rules, history and report export in one operating interface.
Real-Time Multi-Parameter Monitoring
M2.5, PM10, VOCs, H2S, NH3, SO2, NOx, noise, and meteorological data can stream from distributed monitoring points.
Buffered Data Transmission
Gateway-side caching and backfill over LoRaWAN or 4G help preserve readings when connectivity is unstable.
Configurable Alerting
Threshold triggers, compound-condition rules, and multi-channel notifications can be adapted to each monitoring zone.
Multi-Vendor Unified Access
LoRaWAN, MQTT, Modbus, TCP/IP, and HTTP integration can connect YenGear devices and selected existing sensors.
Flexible Deployment
4G, WiFi, Ethernet, cloud-hosted, private cloud, and on-premise options can be selected by project needs.
Configurable Report Export
Environmental ledgers, event records, and exports can be generated in PDF, Excel, CSV, or API-ready formats.
Deployment planning
Plan monitoring around the site
Connect distributed monitoring points, gateways and one operating view for park-wide environmental data.
Map emission sources, park boundaries and reporting points before selecting sensor and gateway locations.
Use LoRaWAN or 4G sensing, gateway buffering and cloud dashboards for the configured monitoring points.
Export configured records and reports for the target operating or regulatory workflow.
Deployment planning
Choose a wired or wireless deployment
Wireless links can reduce civil work and make monitoring points easier to add or relocate.
| Wired Monitoring | Wireless YenGear IoT Cloud |
|---|---|
| Trenching, cabling, and power runs create weeks of civil work. | Sensors deploy faster. Mount, power on, and connect through LoRaWAN/4G. |
| Fixed infrastructure makes each monitoring-point move expensive. | Redeploy sensors as emission sources, tenants, or park boundaries change. |
| Local loggers and separate platforms fragment the operating picture. | Configured readings appear in one dashboard with alerts, exports, and APIs. |
| A cabinet or cable issue may affect an entire monitoring segment. | Distributed wireless coverage helps isolate failures and simplify expansion. |
System components
Related Products
Gateways and cloud tools are selected for the site’s sensors, network and reporting requirements.

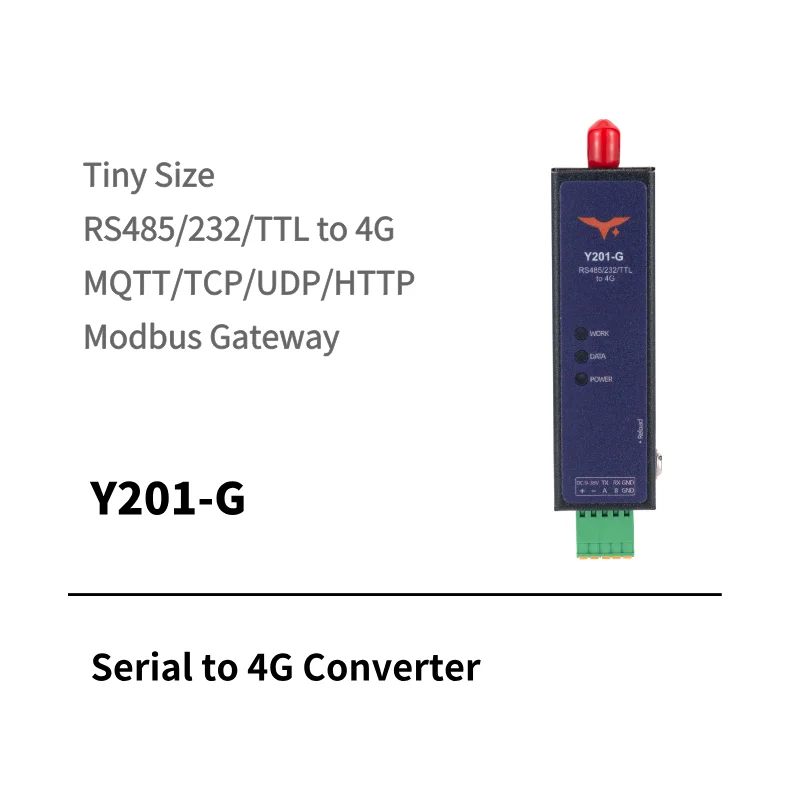

Cellular uplink
Serial to 4G DTU
Reliable cellular backhaul for distributed environmental sensors.
Product details

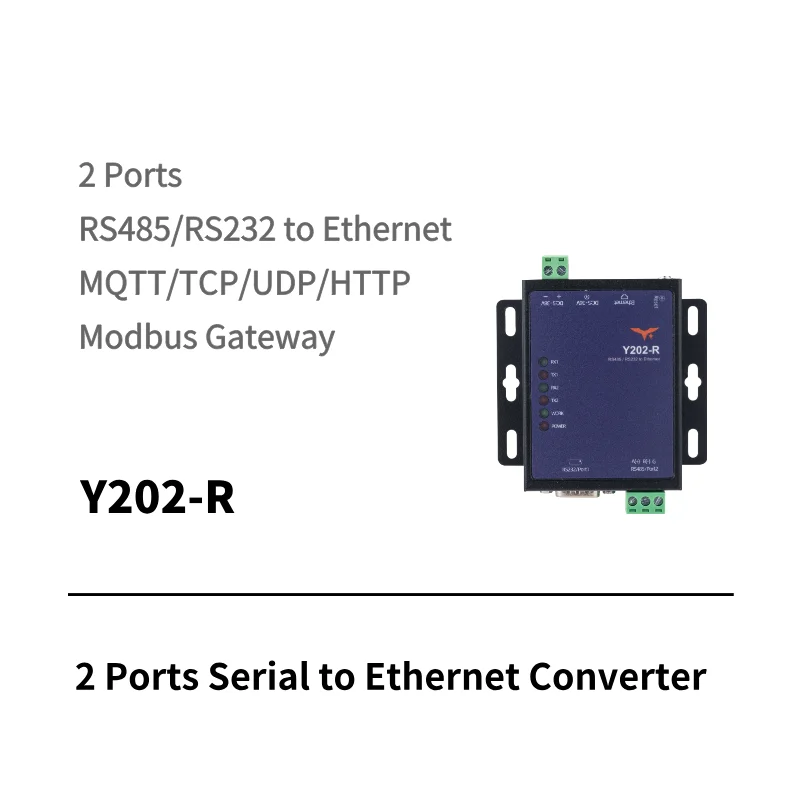

Ethernet serial gateway
2-Port Serial to Ethernet Converter
Wired serial-to-IP connectivity for monitoring cabinets and existing instruments.
Product details
Monitoring application
YenGear IoT Cloud
One dashboard for readings, alerts, history, exports, and compliance workflows.
Product details
FAQ
Common questions about park-wide monitoring, integration and project scope.
How long does deployment take for a typical park?
Timing depends on site area, sensor count, existing infrastructure and reporting requirements. We confirm the schedule after the site survey.
Do we need to replace our existing environmental sensors?
Not necessarily. Existing sensors can be assessed by their interface, protocol, register map, power and data quality. TCP, MQTT, Modbus or HTTP support does not by itself establish compatibility; confirm the device during the site survey.
What happens to data if the network goes down?
Compatible gateways can buffer readings during a network interruption and backfill the stored data when connectivity returns. Storage capacity and behavior depend on the selected equipment.
Can the platform submit reports directly to government systems?
The platform can export configured records and reports. Direct submission, formats and regulatory templates depend on the target system and require project confirmation.
How can alert noise be reduced?
Operators can combine thresholds, duration requirements and multiple conditions so that a brief reading spike does not automatically create an alert.
What does pricing depend on?
Pricing depends on the number of sensor nodes, monitoring parameters, integrations and the cloud or on-premise deployment model. YenGear provides a defined project quotation.
Environmental monitoring assessment
Plan Industrial Park Monitoring
Tell us your monitoring points and reporting needs.
- Monitoring locations, environmental parameters and sensor interfaces
- Installation country, site power and network coverage
- Reporting, alert and system-integration requirements
