Two matched modules with nine digital inputs and nine relay outputs per module

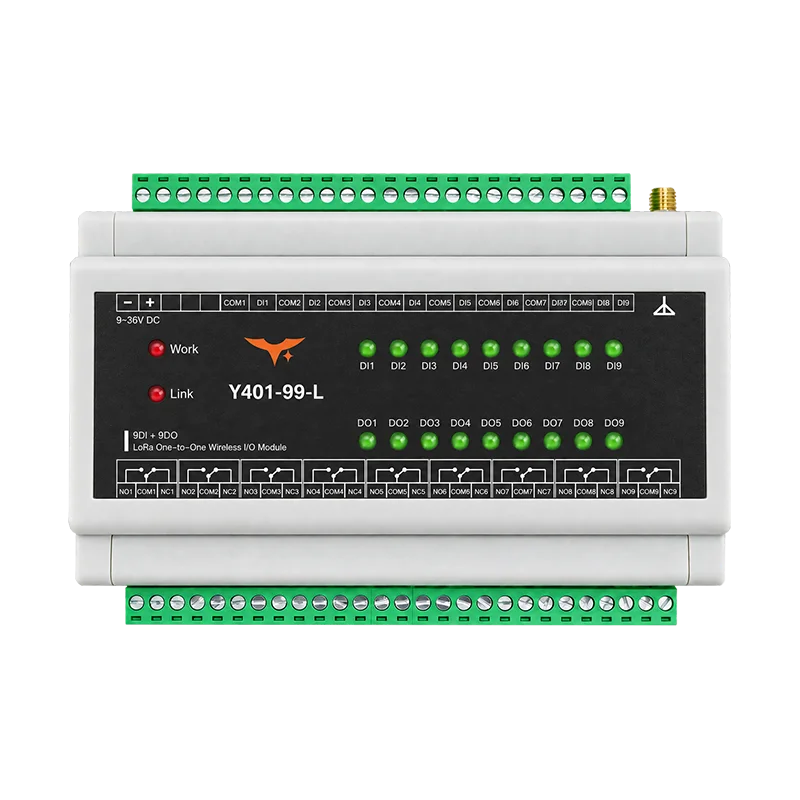

Y401-99-L LoRa Wireless I/O Pair, 9DI/9DO
Nine-channel point-to-point wireless I/O module
Y401-99-L links nine digital input and relay output channels between two matched LoRa modules. Each input drives the corresponding relay at the other module.
Key Features
Corresponding input-to-output control in both directions
Standard version: up to 5 km in open areas with clear line of sight; actual range depends on the installation and site
A separate fast communication version offers 1000 m range and latency below 500 ms
Passive dry-contact or NPN open-collector inputs; do not apply voltage directly to DI
If communication is lost, relay outputs reset after approximately 80 seconds without recovery; verify behavior during commissioning
Specifications
Wireless
- Technology
- LoRa
- Standard Range
- Up to 5 km in open areas with clear line of sight
- Fast Version
- 1000 m range, latency below 500 ms
- Antenna Connector
- SMA female
Power Supply
- Voltage
- 9–36 V DC
- Maximum Power
- 3 W
Digital Inputs
- Channels
- 9
- Type
- Passive dry contact or NPN open-collector
Digital Outputs
- Channels
- 9
- Type
- Relay contacts
- Rating
- 5 A at 250 V AC or 28 V DC
Mechanical
- Dimensions
- 56 × 109 × 160 mm
- Weight
- Approximately 910 g
- Operating Temperature
- −20 to 85 °C
- Humidity
- 10–90% RH, non-condensing
