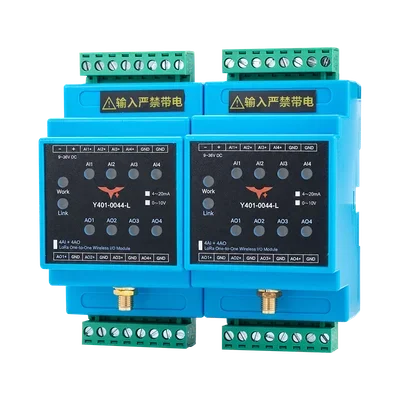

Two modules form a point-to-point link; each provides four analog inputs and four analog outputs
Y401-0044-L LoRa Wireless Analog I/O Pair, 4AI/4AO
Four-channel point-to-point wireless analog I/O module
Y401-0044-L links 4 AI and 4 AO per module over point-to-point LoRa. Choose matching 4–20 mA or 0–10 V versions. No digital I/O.
Key Features
Select matching 4–20 mA current or 0–10 V voltage configurations when ordering; no digital inputs or relay outputs
Inputs at either module drive the corresponding outputs at the other module
Both signal versions use 9–36 V DC power
For the current version, use an active signal source with at least 10 V source voltage; the stated output load limit is 500 Ω
Check voltage-output loading against the receiver input impedance; current-version limits do not define voltage-output limits
Assess timing and output behavior during link loss and recovery before connecting a control load; do not use the wireless link as the sole emergency-stop or personnel-safety path
Specifications
Wireless
- Technology
- LoRa
- Topology
- Point-to-point
Power Supply
- Voltage
- 9–36 V DC
Analog Input
- Channels
- 4
- Signal
- 4–20 mA or 0–10 V, selected when ordering
Analog Output
- Channels
- 4
- Signal
- Matching ordered current or voltage configuration
Digital I/O
None
