1DI+1DO LoRa Wireless Multi-Node I/O Sync Module

I/O Sync Module, , , ,

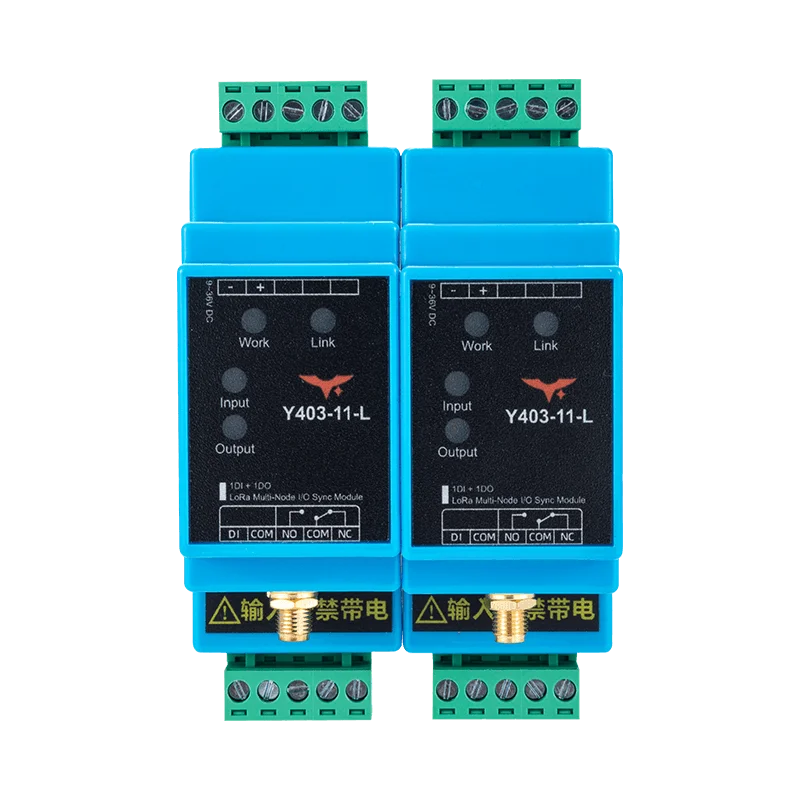

Y403-11-L LoRa I/O Sync Module on DIN rail

Y403-11-L Mesh LoRa Linkage Controller

Model: Y403-11-L

Key Features

  • When any node DI closes, the DO on all nodes, including the local node, energizes

  • Nodes automatically relay data and select the best route to extend communication distance

  • 398 to 525 MHz LoRa communication reaches 5000 m in open area and extends further through relaying

Overview

LoRa multi-node I/O sync module that energizes all node outputs when any node input closes, with automatic relay forwarding to extend communication distance.

Key Features

  • When any node DI closes, the DO on all nodes, including the local node, energizes

  • Nodes automatically relay data and select the best route to extend communication distance

  • 398 to 525 MHz LoRa communication reaches 5000 m in open area and extends further through relaying

  • 9 to 36 VDC supply with reverse-polarity protection and DIN-rail mounting

Specifications

WirelessFrequency Band398~525 MHz
Communication Range5000 m (open area)
Relay ExtensionExtended through node-to-node relaying
Antenna ConnectorSMA
Standard Antenna470 MHz magnetic-mount antenna
Power SupplyVoltageDC 9~36V
Max Power Consumption1W
Operating Temperature-20°C ~ +85°C
Humidity10% ~ 90% RH, non-condensing
Digital InputsChannels1
TypeNPN signal / dry contact
Digital OutputsChannels1
TypeSPDT relay
RatingAC 277V 5A / DC 28V 5A
MechanicalDimensions88 x 37 x 59 mm
WeightApprox. 50 g
Mounting35 mm DIN rail
ProtectionIP20
