4DI+4DO LoRa wireless I/O sync module for IoT remote control

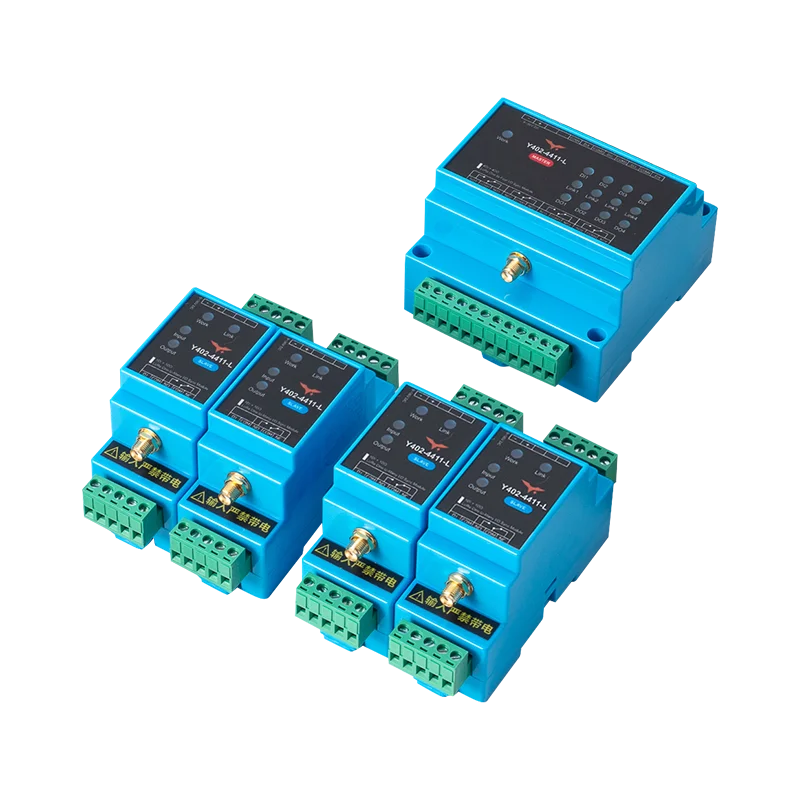

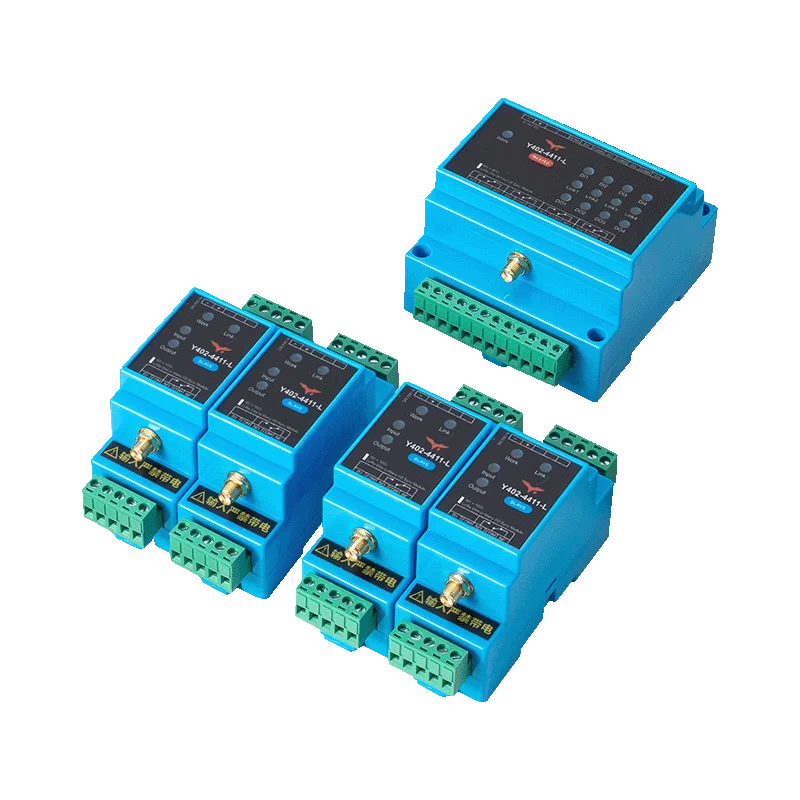

Y402-4411-L One-to-Four LoRa I/O Sync Module

Model: Y402-4411-L

Key Features

  • Basic system includes 1 master and 1 slave, with expansion to 1 master + N slaves

  • Master channel 1 input maps to slave channels 1 to 4 outputs, while any slave input can drive the master output

  • 398 to 525 MHz LoRa communication reaches 5000 m in open area

Overview

One-to-four LoRa channel mapping system where the master 1DI/1DO node drives all four outputs on each slave, and any slave input can drive the master relay.

Key Features

  • Basic system includes 1 master and 1 slave, with expansion to 1 master + N slaves

  • Master channel 1 input maps to slave channels 1 to 4 outputs, while any slave input can drive the master output

  • 398 to 525 MHz LoRa communication reaches 5000 m in open area

  • 9 to 36 VDC supply with reverse-polarity protection and DIN-rail mounting

Specifications

WirelessFrequency Band398~525 MHz
Communication Range5000 m (open area)
Antenna ConnectorSMA
Standard Antenna470 MHz magnetic-mount antenna
Power SupplyVoltageDC 9~36V
Max Power Consumption1.5W (master) / 0.8W (slave)
Operating Temperature-20°C ~ +85°C
Humidity10% ~ 90% RH, non-condensing
Digital InputsMaster Channels1
Slave Channels4
TypeNPN signal / dry contact
Digital OutputsMaster Channels1
Slave Channels4
TypeSPDT relay
RatingAC 277V 5A / DC 28V 5A
MechanicalMaster Dimensions88 x 37 x 59 mm
Slave Dimensions88 x 72 x 59 mm
Mounting35 mm DIN rail
ProtectionIP20
