4DI+4DO LoRa Wireless One-to-Many I/O Sync Module

I/O Sync Module, , , ,

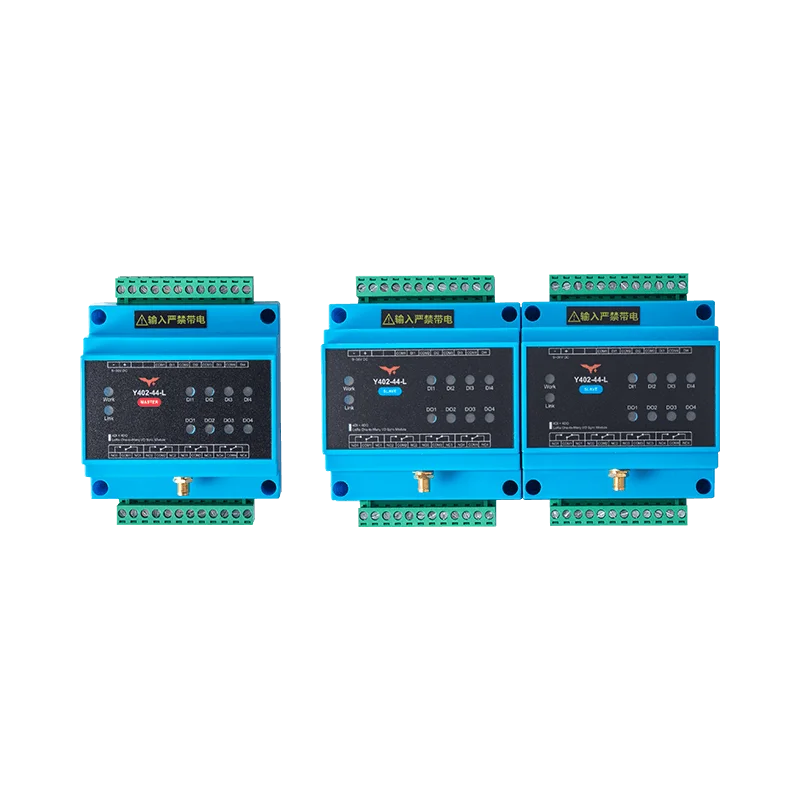

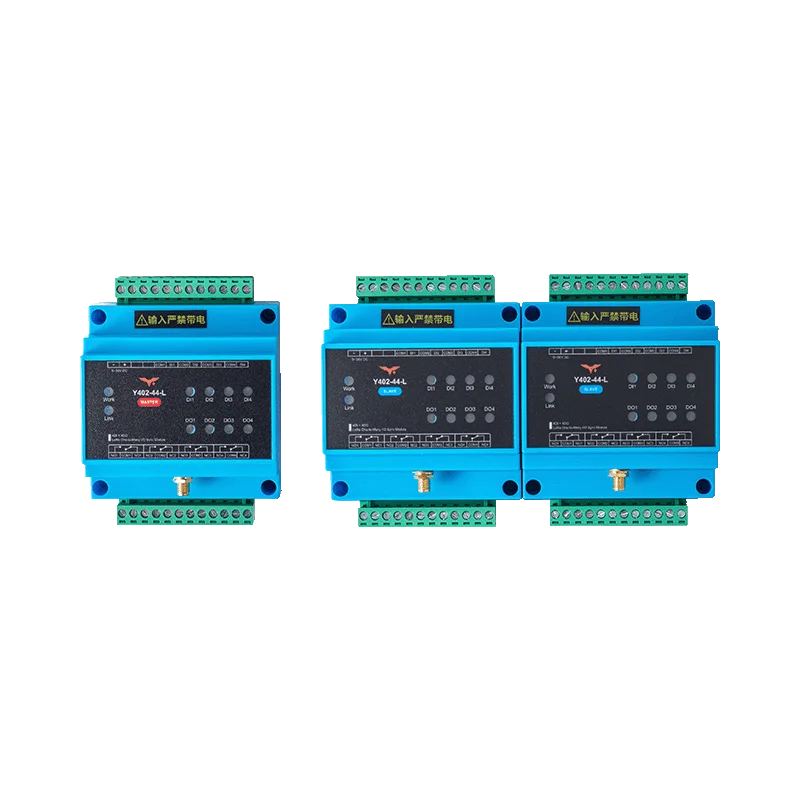

Y402-44-L LoRa I/O Sync Module for wireless control

Y402-44-L Quad-Channel One-to-Many LoRa I/O Sync module

Model: Y402-44-L

Key Features

  • Basic system includes 1 master and 1 slave, with expansion to 1 master + N slaves

  • Four independent master channels can drive all slave outputs, while any slave input can drive the matching master output

  • 398 to 525 MHz LoRa communication reaches 5000 m in open area

Overview

Master-slave LoRa system delivering four-channel digital mirroring between a central controller and multiple remote nodes with bidirectional signalling.

Key Features

  • Basic system includes 1 master and 1 slave, with expansion to 1 master + N slaves

  • Four independent master channels can drive all slave outputs, while any slave input can drive the matching master output

  • 398 to 525 MHz LoRa communication reaches 5000 m in open area

  • 9 to 36 VDC supply with reverse-polarity protection and DIN-rail mounting

Specifications

WirelessFrequency Band398~525 MHz
Communication Range5000 m (open area)
Antenna ConnectorSMA
Standard Antenna470 MHz magnetic-mount antenna
Power SupplyVoltageDC 9~36V
Max Power Consumption2W (master) / 1.5W (slave)
Operating Temperature-20°C ~ +85°C
Humidity10% ~ 90% RH, non-condensing
Digital InputsChannels4
TypeNPN signal / dry contact
Digital OutputsChannels4
TypeSPDT relay
RatingAC 277V 5A / DC 28V 5A
MechanicalMaster Dimensions88 x 72 x 59 mm
Slave Dimensions88 x 72 x 59 mm
Mounting35 mm DIN rail
ProtectionIP20
