1DI+1DO LoRa Wireless Point-to-Point I/O Sync Module

I/O Sync Module, , ,

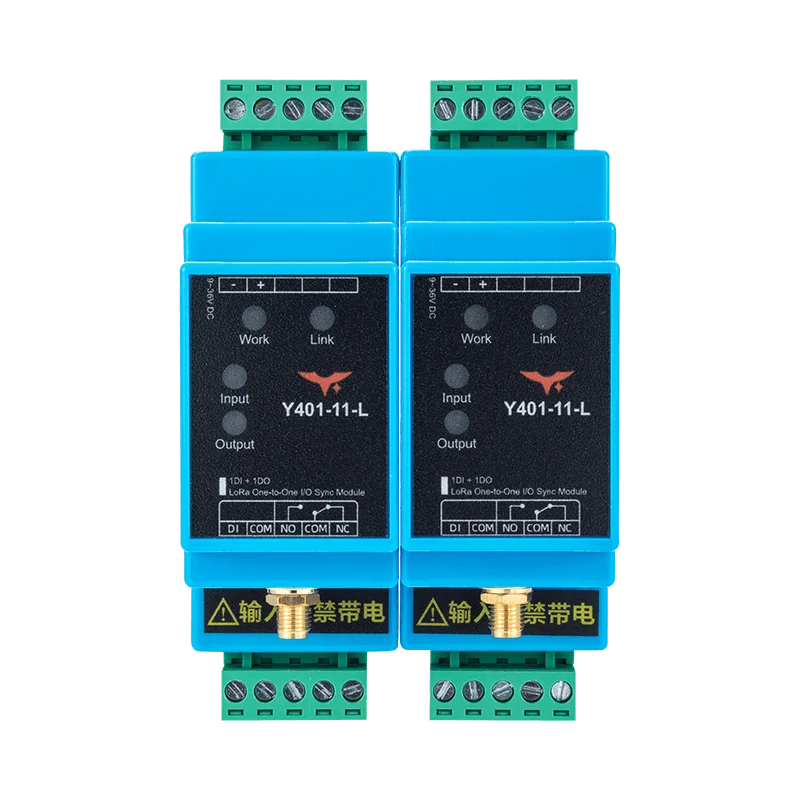

1DI+1DO LoRa wireless I/O sync module for industrial IoT

Y401-11-L Point-to-Point LoRa I/O Sync Module

Model: Y401-11-L

Key Features

  • Factory-paired LoRa 1DI/1DO nodes for point-to-point mirroring

  • 398 to 525 MHz link reaches 5000 m in open area with SMA antenna

  • Bidirectional operation lets either device drive the remote relay output

Overview

Factory-paired LoRa point-to-point module that mirrors a single digital input to a remote relay output over 5 km without any configuration or wiring.

Key Features

  • Factory-paired LoRa 1DI/1DO nodes for point-to-point mirroring

  • 398 to 525 MHz link reaches 5000 m in open area with SMA antenna

  • Bidirectional operation lets either device drive the remote relay output

  • 9 to 36 VDC supply, reverse-polarity protection, DIN-rail mounting, and LED status indication

Specifications

WirelessFrequency Band398~525 MHz
Communication Range5000 m (open area)
Antenna ConnectorSMA
Standard Antenna470 MHz magnetic-mount antenna
Power SupplyVoltageDC 9~36V
Max Power Consumption1W
Operating Temperature-20°C ~ +85°C
Humidity10% ~ 90% RH, non-condensing
Digital InputsChannels1
TypeNPN signal / dry contact
Digital OutputsChannels1
TypeSPDT relay
RatingAC 277V 5A / DC 28V 5A
MechanicalDimensions88 x 37 x 59 mm
WeightApprox. 50 g
Mounting35 mm DIN rail
ProtectionIP20
