16-Channel Analog Input Module

I/O Module, , , ,

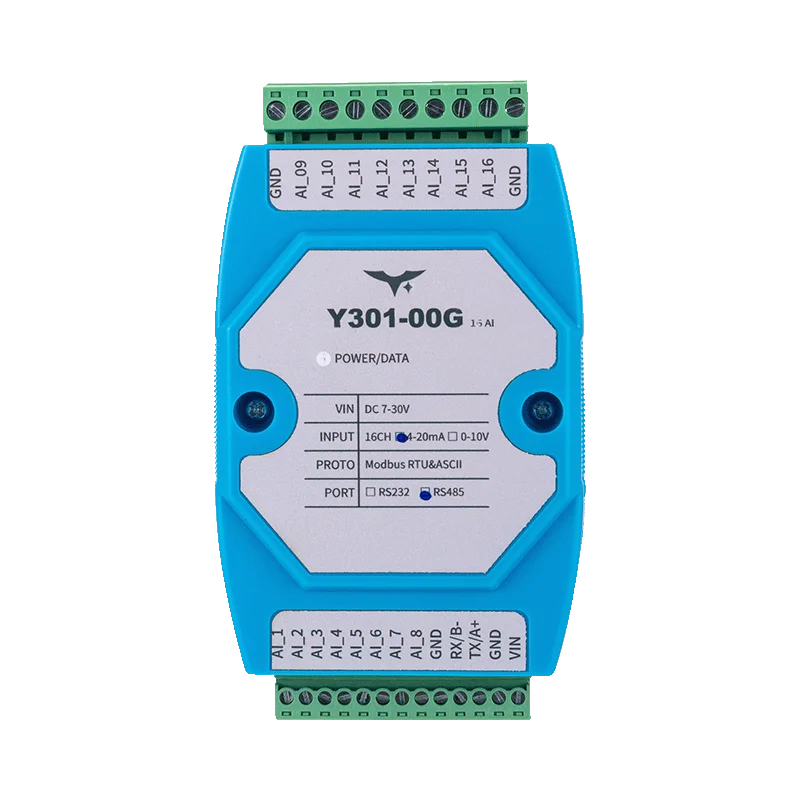

16-channel analog input module for industrial IoT data acquisition

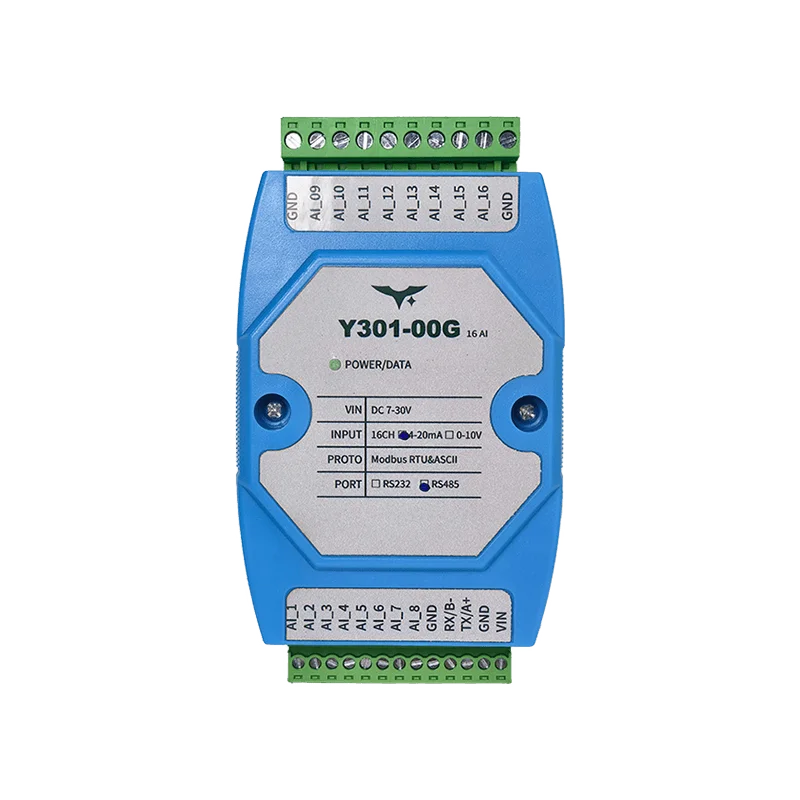

Y301-00G 16AI Modbus Analog Input Module

Model: Y301-00G

Key Features

  • 16-channel analog input platform for high-density telemetry and PLC acquisition

  • Supports 0-10 V or 4-20 mA input per channel

  • 12-bit ADC with linear scaling where actual value = register x 0.001

Overview

16-channel Modbus analog input concentrator for high-density telemetry panels, with per-channel 0-10 V or 4-20 mA support.

Key Features

  • 16-channel analog input platform for high-density telemetry and PLC acquisition

  • Supports 0-10 V or 4-20 mA input per channel

  • 12-bit ADC with linear scaling where actual value = register x 0.001

  • 7 to 30 VDC supply in a 35 mm DIN-rail enclosure

Specifications

Power SupplyVoltageDC 7~30V
Typical Power Consumption
Operating Temperature-40°C ~ +85°C
Humidity5% ~ 95% RH, non-condensing
Mounting35 mm DIN rail
Analog InputsChannels16
Input Type4-20 mA or 0-10 V, configurable per channel
Resolution12-bit (4096 steps)
Accuracy+/-0.5% FS
Linearity+/-0.5% FS
Sampling Rate10 Hz
Input ImpedanceVoltage mode: >100 kohm; current mode: 250 ohm
Overvoltage Protection+/-30 V
CommunicationInterfacesRS485 / RS232
ProtocolModbus RTU / Modbus ASCII
Baud Rate600~115200 bps
Address Range1~255
MechanicalDimensions100 x 70 x 35 mm
WeightApprox. 60 g
