8-Channel Analog Output Module

I/O Module, , , , ,
8-channel analog output module for industrial IoT automation

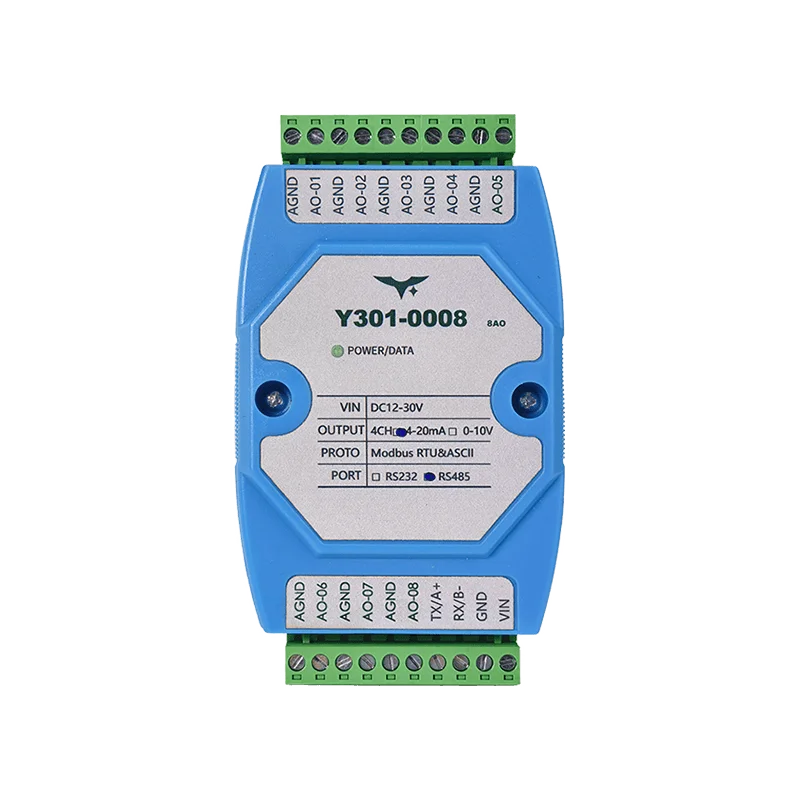

Y301-0008 8AO Modbus Analog Output Module

Model: Y301-0008

Key Features

  • 14-bit DAC with 0.001 V / 0.001 mA resolution

  • 0-10 V and 4-20 mA outputs configurable per channel, including combo versions

  • Opto-isolated RS485 plus optional RS232 interface

Overview

8-channel Modbus analog output module for higher-density analog drive applications, with configurable 0-10 V or 4-20 mA outputs.

Key Features

  • 14-bit DAC with 0.001 V / 0.001 mA resolution

  • 0-10 V and 4-20 mA outputs configurable per channel, including combo versions

  • Opto-isolated RS485 plus optional RS232 interface

  • Plug-and-play Modbus integration with address retention and power-loss memory

Specifications

Power SupplyVoltageDC 12~30V
Typical Power Consumption11 mA @ 24V (~0.26 W)
Operating Temperature-40°C ~ +85°C
Humidity0% ~ 95% RH, non-condensing
Analog OutputsChannels8
Output Type0-10 V or 4-20 mA, configurable per channel
Resolution14-bit (16384 steps)
Accuracy+/-0.1% FS
Linearity+/-0.1% FS
Settling Time
CommunicationInterfacesOpto-isolated RS485, optional RS232
ProtocolModbus RTU / Modbus ASCII / Modbus TCP via gateway
Baud Rate600~115200 bps (auto-detect)
Address Range1~255
MechanicalDimensions100 x 70 x 35 mm
Mounting35 mm DIN rail
