2DI+2DO LoRa Wireless Point-to-Point I/O Sync Module

I/O Sync Module, , , ,

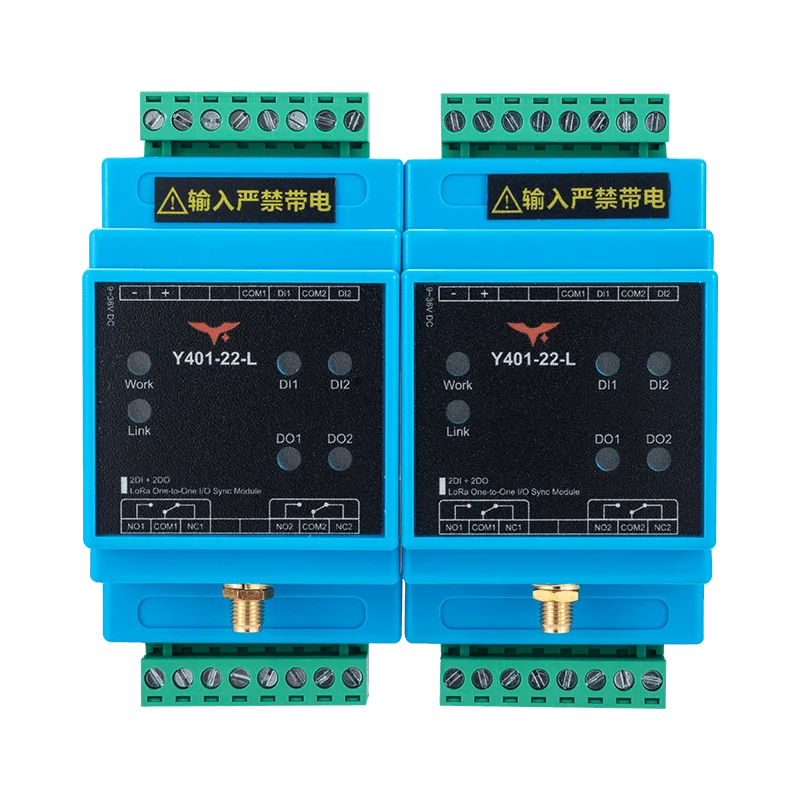

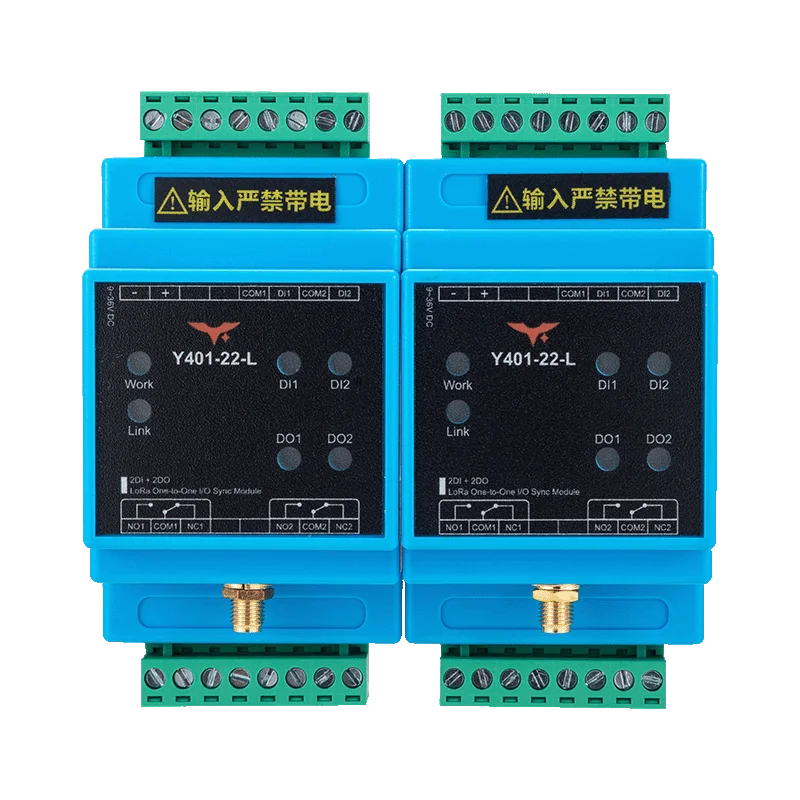

Y401-22-L LoRa I/O Sync Module with 2DI/2DO channels

Y401-22-L Dual-Channel LoRa I/O Sync Module

Model: Y401-22-L

Key Features

  • Factory-paired LoRa 2DI/2DO nodes for point-to-point control

  • 398 to 525 MHz link reaches 5000 m in open area with SMA antenna

  • Bidirectional operation mirrors channel 1 and channel 2 in both directions

Overview

Factory-paired LoRa duo that mirrors two digital inputs to remote relay outputs in both directions across 5 km links without any configuration.

Key Features

  • Factory-paired LoRa 2DI/2DO nodes for point-to-point control

  • 398 to 525 MHz link reaches 5000 m in open area with SMA antenna

  • Bidirectional operation mirrors channel 1 and channel 2 in both directions

  • 9 to 36 VDC supply, reverse-polarity protection, DIN-rail mounting, and per-channel LEDs

Specifications

WirelessFrequency Band398~525 MHz
Communication Range5000 m (open area)
Antenna ConnectorSMA
Standard Antenna470 MHz magnetic-mount antenna
Power SupplyVoltageDC 9~36V
Max Power Consumption1.5W
Operating Temperature-20°C ~ +85°C
Humidity10% ~ 90% RH, non-condensing
Digital InputsChannels2
TypeNPN signal / dry contact
Digital OutputsChannels2
TypeSPDT relay
RatingAC 277V 5A / DC 28V 5A
MechanicalDimensions88 x 72 x 59 mm
WeightApprox. 50 g
Mounting35 mm DIN rail
ProtectionIP20
